SEM 816LGP Track type tractor / Bulldozer

Product Categories

Changyi Industrial (Shanghai) Co.,LTD.

Contact Now

Place of Origin : China

Brand Name : SEM

Certification : ISO9001

Model Number : SEM816LGP

MOQ : 1unit

Packaging Details : Null

Delivery Time : 5 working days

Payment Terms : T/T or L/C at sight or western union

Contact Now

Parameters

Model	SEM816LGP
Operating Weight	19720KG
Ground Pressure	31.5 kPa
Ground Clearance	435mm
Max. Slope	30°
Engine
Model	Weichai WD10G178E25
Flywheel Power	120kw /160hp
Working Tool
Blade Type	S
Blade Capacity	3.4m³
Blade Width	4227mm
Blade height	1000 mm
Max. Blade Digging Depth	470mm
Max. Blade Lift Ground Clearance	1055mm
Max. Output Rimpull	280kN
Max. Digging Depth of Ripper 584mm	N/A
Max. Clearance Under Tip	N/A
Powertrain
Type	Electronic control, Dual-path, Hydrostatic Drive
Travel Speed-F/R	0-10 km/r (Infinitely Variable Speed Control)
Steering &Brake	Hydrostatic steering, wet, Multiple- Disc Brakes
Min. Streeing Radius	3740 mm (Counter-rotatedavaliable)
Undercarrige
Track Shoe Width	1050mm
Track Shoe Quantity	42 pieces
Length of Track on ground	2925 mm
Track Gauge	2300 mm
Track Roller Quantity	7 / side
Carrier Roller Quantity	2 / side
Hydraulic System
Type	Pilot Control
Implement Hydraulic System Pressure	19 Mpa
Service Refill Capacities
Cooling system	45 L
Hydrostatic oil	40L
Implement Oil	60L
Fuel	320L
Pivot Shaft Case (each side)	1.2L

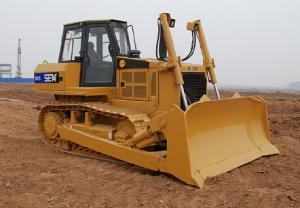

SEM 816LGP Track type tractor / Bulldozer Images
